Stainless Steel Pumps

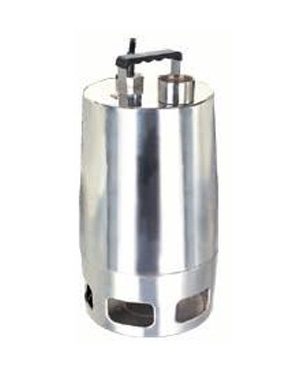

WQ-BS Stainless Steel Pumps Series
Application:
Corrosion resistant Stainless Steel submersible dewatering pumps, specially designed for dewatering construciton sites, mines; subway,tunnels and civil engineering; utilities; residential and watewater discharge.
Key Features:
- 1HP and 1-1/2HP
- 304 Stainless Steel construction
- 1-1/2”NPT top discharge
- Dual mechanical, 300 series Stainless Steel Parts
- Air-filled motor
Technical Data:
-
DISCHARGE - 1-1/2" NPT. top discharge
-
SOLIDS HANDLING 1"
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
-
MOTOR HOUSING 304 Stainless Steel
- VOLUTE 304 Stainless Steel
- SEAL PLATE 304 Stainless Steel
-
IMPELLER 304 Stainless Steel
-
SHAFT Corrosion resistance stainless steel, threaded design.
-
BEARING (UPPER & LOWER) Ball bearing construction to carry all radil and thrust loads
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 20ft cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
-
DUAL MECHANICAL SEALS:
Stainless steel metal parts, BUNA-N elastomers
Upper Seal: Carbon vs Ceramic
Lower Seal: Silicon Carbide vs Silicon Carbide -
MOTOR (SINGLE PHASE)
3450 RPM, 60Hz, 115 Volts, 2 Pole
Air Filled, Class B
Permanent Split Capacitor -
SIZE 8.5" X 8.5" X 17.5"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 | 10 | 15 | 20 | 25 | 30 | ||||||
| WQ-0.75BS | 1 | 115/1 | 9.0 | 66 | 60 | 55 | 42 | 32 | 15 | 36 | 36 |
| WQ-1.1BS | 1-1/2 | 115/1 | 15 | 97 | 90 | 82 | 65 | 46 | 30 | 40 | 39 |
