Sewage Pumps
Submersible Sewage Pumps
CFW Series
2"NPT discharge, 2" solid handling, large volume outflow up to 8400GPH, heavy-duty sewage pumps. 1750rpm, 4 pole, 4/10 & 1/2HP, 2-vane & votex impeller, Piggy-back
style float switch for automatic operation avaiable.
50WQ Series
2"NPT discharge, 1.5" solid handling, high head, heavy-duty sewage pumps. 3450rpm,
2 pole, 1/2HP, 3/4HP & 1HP, votex impeller, up to 8400GPH, Max. shut off: 33 ft
80WQ-4P Series
3"NPT discharge, 2" solid handling, large volume up to 23000GPH, heavy-duty sewage pumps. 1750rpm, 4 pole, 115/230V, 1/2HP, 3/4HP, 1HP & 1.5HP, single phase, 2HP, 3HP three phases avaiable, 2-vane impeller, Max. shut off: 39 ft

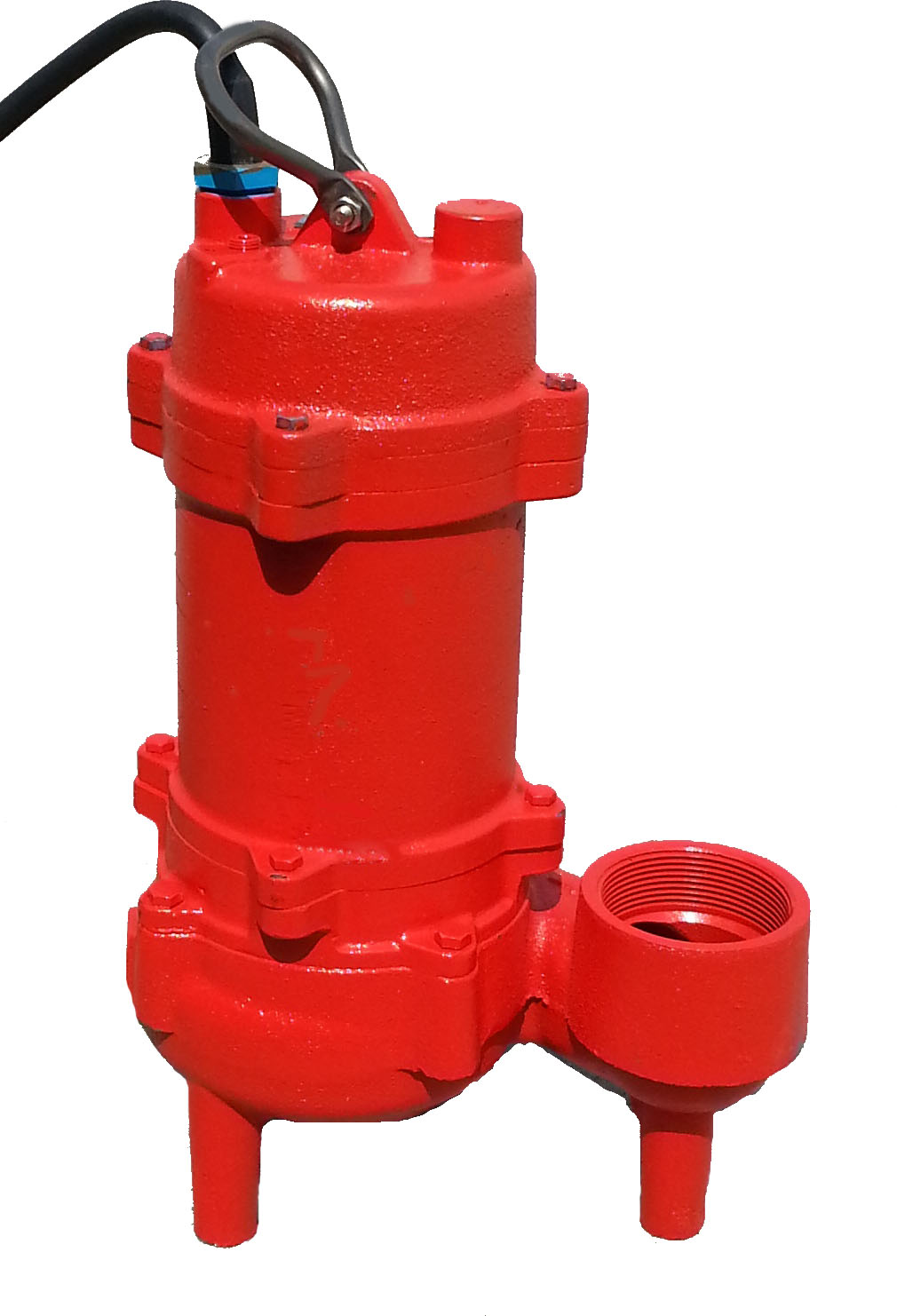

80WQ-2P Series
3"NPT discharge, 2" solid handling, large volume up to 20000GPH, heavy-duty sewage pumps. 3450rpm, 2 pole,
208~230V, 1HP, 1.5HP& 2HP, single phase, 230/460V 2HP &3HP three phases avaiable, Closed impeller, Max. shut off: 94 ft

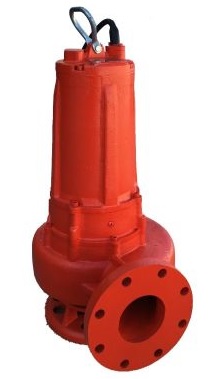

100WQ Series
4" discharge, 3" solid handling, large volume up to 32000GPH, heavy-duty sewage pumps. 1750rpm, 4 pole, 3 phases, 230/460V, 3HP & 5HP, 2-vane impeller, Max. shut off: 51 ft, 4" ANSI flange adapter.
