Pump Base Elbows
FL1 --- 1.25" Pump Base Elbow
Cast Iron Base Elbow
1-1/4" NPT Pump Connection
2" NPT Female Vertical Discharge
Compact Design for Easy Installation
3/4" or 1" Guide Rails
Stainless Steel Accessories Standard

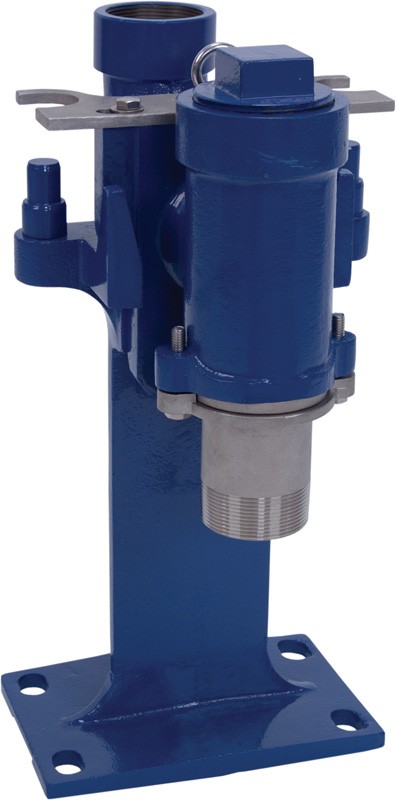

FL1CV --- 1.25" Pump Base Elbow with Check Valve
Cast Iron Base Elbow
1-1/4" NPT Pump Connection
2" NPT Female Vertical Discharge
Compact Design for Easy Installation
3/4" or 1" Guide Rails
Stainless Steel Accessories Standard
Includes Integral Check Valve in Pull-Out Flange

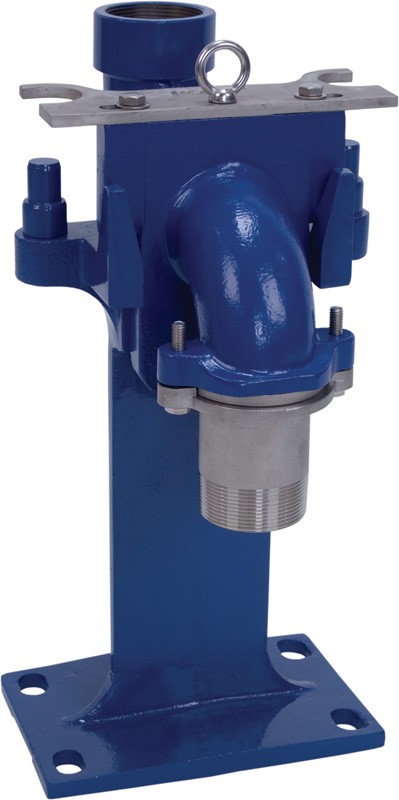

FL2 --- 2.00" Pump Base Elbow
Cast Iron Base Elbow
2" NPT Pump Connection
2" NPT Female Vertical Discharge
Compact Design for Easy Installation
3/4" or 1" Guide Rails
Stainless Steel Accessories Standard

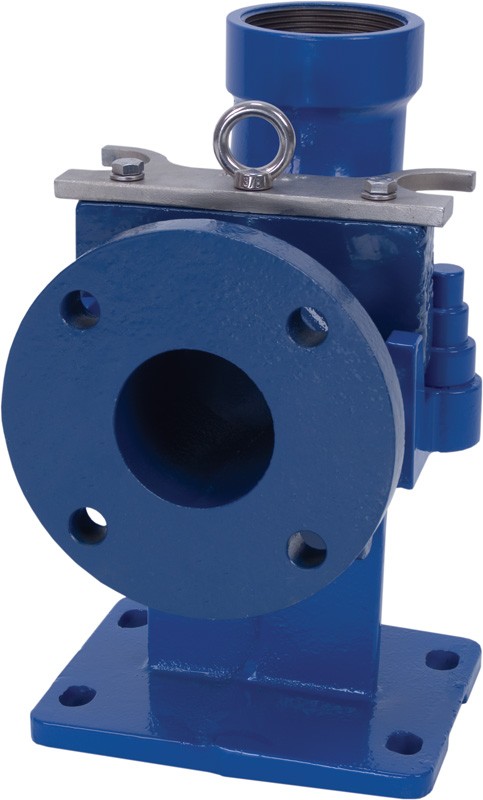

FL3 --- 3.00" Horizontal Pump Base Elbow
Cast Iron Base Elbow
3" ANSI, Class 125, Horizontal Flange
3" NPT Female Vertical Discharge
Compact Design for Easy Installation
3/4" or 1" Guide Rails
Stainless Steel Accessories Standard

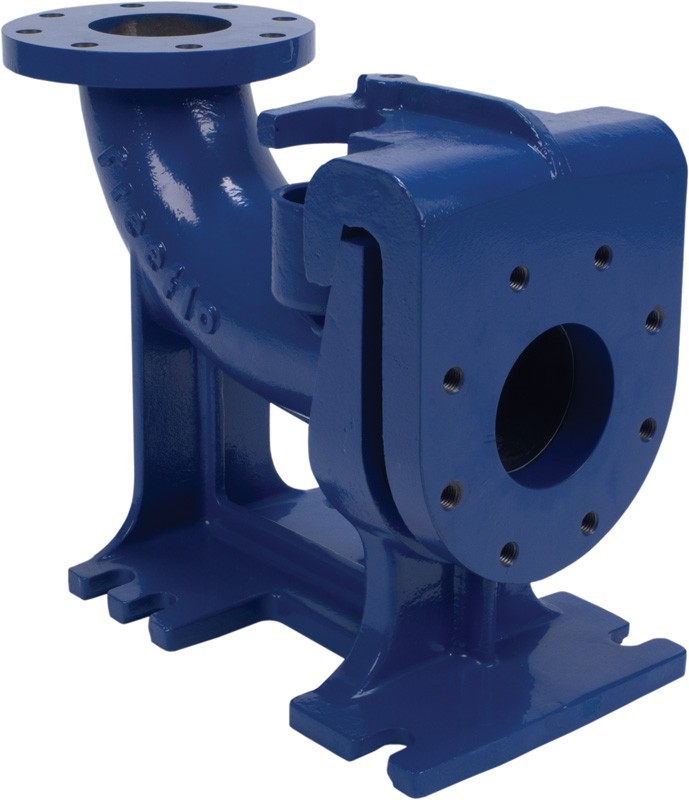

FL4 --- 4" Pump Base Elbow, Flygt Compatible
Cast Iron Base Elbow
Flygt Compatiable
4" ANSI, Class 125, Horizontal Flange
4" Flange Discharge
Compact Design for Easy Installation
1-1/2" or 2" Guide Rails
Stainless Steel Accessories Standard
Rated for pumps weighing less than 2,000 lbs
FL6 --- 6" Pump Base Elbow, Flygt Compatible
Cast Iron Base Elbow
Flygt Compatiable
6" ANSI, Class 125, Horizontal Flange
6" Flange Discharge
Compact Design for Easy Installation
1-1/2" or 2" Guide Rails
Stainless Steel Accessories Standard
Rated for pumps weighing less than 2,000 lbs
