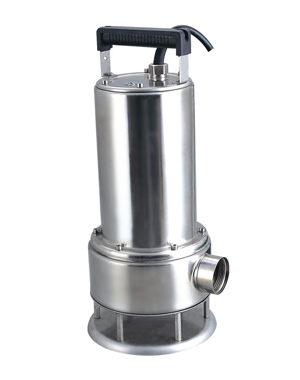

WQ-B Stainless Steel Pumps Series

Application:

Corrosion resistant Stainless Steel submersible dewatering pumps, specially designed for dewatering construciton sites, mines; subway,tunnels and civil engineering; utilities; residential and watewater discharge.



Key Features:

  • 3/4HP, 1HP and 1-1/2HP
  • 304 Stainless Steel construction
  • 1-1/2”NPT side discharge
  • Dual mechanical, 300 series Stainless Steel Parts
  • Air-filled motor



Technical Data:

  • DISCHARGE -  1-1/2" NPT. Vertical
  • SOLIDS HANDLING 1"
  • LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
  • MOTOR HOUSING 304 Stainless Steel
  • VOLUTE 304 Stainless Steel
  • SEAL PLATE 304 Stainless Steel
  • IMPELLER 304 Stainless Steel
  • SHAFT  Corrosion resistance stainless steel, threaded design.
  • BEARING (UPPER & LOWER) Ball bearing  construction to carry all radil and thrust loads
  • HARDWARE 300 Series Stainless Steel
  • SQUARE RINGS Buna-N
  • POWER CORD 20ft cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide
  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts, 2 Pole
    Air Filled, Class B
    Permanent Split Capacitor
  • SIZE 8.5" X 6.5" X 16"

Performance:

Model Hp Volt.
Ph		 FLA
amps		 Gal/Min @ Total Head in Feet Shut
off		 Weight
(lbs)
10 15 20 25 30 35
WQ-0.55B 3/4 115/1 7.2 40 25 6       26 29
WQ-0.75B 1 115/1 9.0 75 64 45 27 9   31 30
WQ-1.1B 1-1/2 115/1 15 100 88 73 57 39 26 41 32
