Waterfall Pumps

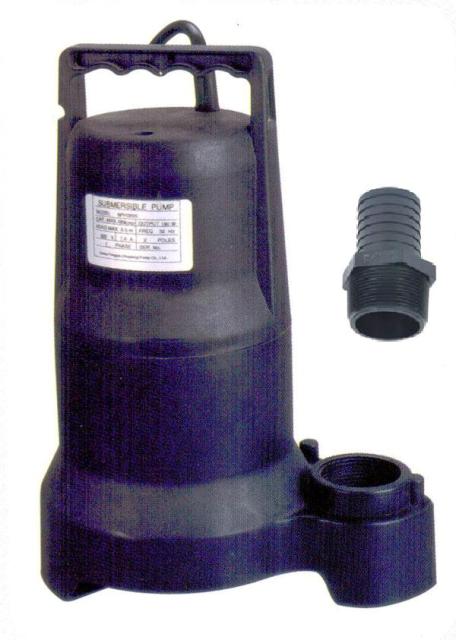

NPH Series Waterfall Pumps

Application:

These high volume plastic pumps are durable, reliable and energy-efficient. Their power and simplicity of operation make them the perfect choice for many water gardening applications, especially waterfalls.



Key Features:

  • 1/4HP, 1/3HP,1/2HP and 3/4HP
  • Pump Construction is completely non-corrosive
    Heavy duty motor shaft ball-bearing for longevity
    Water cooled - no oil
    Energy-efficient capacitor start motor





These rugged high-volume waterfall pumps are durable, reliable and energy-efficient, ideal for waterfalls, streams, and large water features. Built-in carry handles add convenience. 1-1/2" vertical discharge eliminates the need for accessory elbows and increases the life of the pump by reducing friction created by an elbow fitting. Easy to use, just set in water at least 16 inches deep. Made to run continuously under pond conditions.

Features & Benefits:

  • Heavy-duty .304 stainless steel motor shaft
  • High head application
  • Non-corrosive pump construction
  • Water-cooled, no danger of oil contamination
  • Energy-efficient capacitor-start motor
  • 1-1/2" vertical discharge - eliminates the need for accessory elbows and increases the life of the pump by reducing friction created by an elbow fitting
  • 20' 16-gauge power cord for convenience
  • Ceramic mechanical seal

Performance:

Model Hp Volt.
Ph		 Amps
(Min.-Max.)		 Gal/Min @ Total Head in Feet Shut
off		 Weight
(lbs)
1 5 10 15 20 30
NPH2000 1/4 115/1 1.9-3.6 40 36 28 20 10   28 14.5
NPH3000 1/3 115/1 2.1-4.7 50 48 40 30 22 4 34 15
NPH4000 1/2 115/1 2.4-6.7 67 65 57 50 40 20 39 15.5
NPH5000 3/4 115/1 4.1-7.8 83 79 70 65 60 43 52 16
