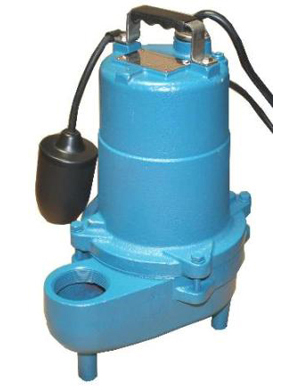

CFW Sewage Pumps Series

Application:

These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.

Key Features:

  • 1/2HP Pumps
  • Class 30 cast iron construction
  • 2”NPT discharge, Vertical
  • Single mechanical, Silicon Carbide, 300 series Stainless Steel Parts
  • Oil-filled motor with automatic reset overload provides safe operation
  • Ball bearing construction for long life
  • Piggy-back style float switch for automatic operation
    (Optional, Model "A")



Technical Data:

  • DISCHARGE -  2" NPT. Vertical
  • SOLIDS HANDLING 2" (51mm)
  • LIQUID TEMPERATURE 104 Degrees F. Contiuous
  • MOTOR HOUSING Cast Iron
  • VOLUTE Cast Iron
  • SEAL PLATE Cast Iron
  • IMPELLER Cast Iron
               CFW50: 2 Vane, open
               CFW50V: 10 vane, vortex
  • SHAFT Stainless Steel
  • BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
  • HARDWARE 300 Series Stainless Steel
  • SQUARE RINGS Buna-N
  • POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
  • MOTOR (SINGLE PHASE)
    1750 RPM, 60Hz, 115 or 230 Volts
    NEMA L Includes Overload Protection In The Motor.
    Oil Filled, Class B
    Permanent Split Capacitor
  • SIZE 11" X 8" X 15"

Performance:

Model Hp Volt.
Ph		 FLA
amps		 Gal/Min @ Total Head in Feet Shut
off		 Weight
(lbs)
0 5 10 15 20 25
CFW50A 1/2 115/1 12.0 140 130 115 90 55   25 49
CFW50M 1/2 115/1 12.0 140 130 115 90 55   25 48
CFW502A 1/2 230/1 6.0 140 130 115 90 55   25 50
CFW502M 1/2 230/1 6.0 140 130 115 90 55   25 48
CFW50VA 1/2 115/1 12.0 130 120 95 65 23   23 50
CFW50VM 1/2 115/1 12.0 130 120 95 65 23   23 49
CFW502VA 1/2 230/1 5.5 130 120 95 65 23   23 50
CFW502VM 1/2 230/1 5.5 130 120 95 65 23   23 49
