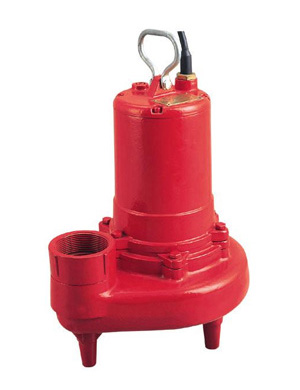

80WQ Sewage Pumps Series

Application:

These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.



Key Features:

  • 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP and 3HP
  • Class 30 cast iron construction
  • 3”NPT discharge, Vertical
  • Dual mechanical, 300 series Stainless Steel Parts
  • Oil-filled motor with automatic reset overload provides safe operation
  • Ball bearing construction for long life





Technical Data:

  • DISCHARGE -  3" NPT. Vertical
  • SOLIDS HANDLING 2" (51mm)
  • LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
  • MOTOR HOUSING Cast Iron
  • VOLUTE Cast Iron
  • SEAL PLATE Cast Iron
  • IMPELLER Cast Iron, 2-Vane, open, dynamically balanced for mechanical protection
  • SHAFT  Corrosion resistance stainless steel, threaded design.
  • BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
  • HARDWARE 300 Series Stainless Steel
  • SQUARE RINGS Buna-N
  • POWER CORD 30ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
  • DUAL MECHANICAL SEALS:
    Stainless steel metal parts, BUNA-N elastomers
    Upper Seal: Carbon vs Ceramic
    Lower Seal: Silicon Carbide vs Silicon Carbide
  • MOTOR (SINGLE PHASE and THREE PHASES)
    1750 RPM, 60Hz, 115/230 Volts, 4 Pole
    NEMA L Includes Overload Protection In The Motor.
    Oil Filled, Class B
    Permanent Split Capacitor
  • SIZE 13.3" X 11.6" X 18"

Performance:

Model Hp Volt.
Ph		 FLA
amps		 Gal/Min @ Total Head in Feet Shut
off		 Weight
(lbs)
5 10 15 20 25 30
80WQ0.37-4P 1/2 115/230/1 8/4 198 140 65       18 80
80WQ0.55-4P 3/4 115/230/1 11/5.5 250 210 140 60     23 82
80WQ0.75-4P 1 115/230/1 13/6.5 264 220 150 66 17   26 84
80WQ1.1-4P 1.5 115/230/1 16/8 295 280 180 135 66 40 32 86
80WQ1.5-4P 2 230/1 9.0 308 295 200 155 90 70 38 105
80WQ1.5-4P 2 230/460/3 6.5/3.2 308 295 200 155 90 70 38 105
80WQ2.2-4P 3 230/460/3 7.1/3.5 380 340 290 250 190 130 39 92
