Sewage Pumps

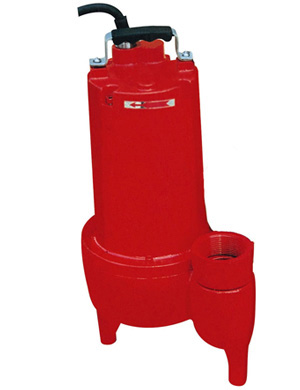

50WQ Sewage Pumps Series
Application:
These heavy-duty sewage pumps are self-contained and recommended for use in a sump or basin, application: sewage, high-capacity sump, effluent.
Key Features:
- 1/2HP, 3/4HP and 1HP
- Class 30 cast iron construction
- 2”NPT discharge, Vertical
- Dual mechanical, 300 series Stainless Steel Parts
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
Technical Data:
-
DISCHARGE - 2" NPT. Vertical
-
SOLIDS HANDLING 1.5" (38mm)
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
-
MOTOR HOUSING Cast Iron
- VOLUTE Cast Iron
- SEAL PLATE Cast Iron
-
IMPELLER Cast Iron, vortex design, dynamically balanced for mechanical protection
-
SHAFT Corrosion resistance stainless steel, threaded design.
-
BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 20ft quick disconnect cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
-
DUAL MECHANICAL SEALS:
Stainless steel metal parts, BUNA-N elastomers
Upper Seal: Carbon vs Ceramic
Lower Seal: Silicon Carbide vs Silicon Carbide -
MOTOR (SINGLE PHASE)
3450 RPM, 60Hz, 115 Volts, 2 Pole
NEMA L Includes Overload Protection In The Motor.
Oil Filled, Class B
Permanent Split Capacitor -
SIZE 10" X 7.2" X 17"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 5 | 10 | 15 | 20 | 25 | ||||||
| 50WQ0.37-2P | 1/2 | 115/1 | 10.0 | 105 | 88 | 76 | 60 | 35 | 23 | 57 | |
| 50WQ0.55-2P | 3/4 | 115/1 | 12.0 | 120 | 98 | 80 | 68 | 35 | 27 | 58 | |
| 50WQ0.75-2P | 1 | 115/1 | 15.0 | 140 | 125 | 110 | 80 | 57 | 6 | 33 | 59 |
Download the 50WQ Sewage pumps brochure here
