Pump and System Accessories
1-1/4" SST Anti-siphon and Pressure Relief Combo Valve
304 SST construction
1-1/4" NPT Pump Connection
Provides pump station air relief and anti-siphon pretection
Attached pressure relief valve (sold seperately) to protect pump
Ideal for pressure sewer site
Easy installation

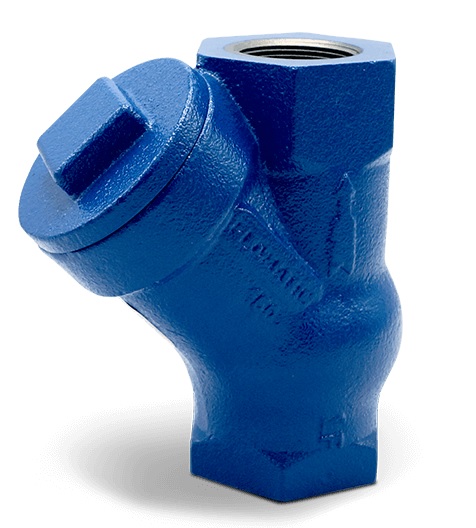

1-1/4” Ball Check Valve
Cast Iron Construction
1-1/4" NPT Pump Connection
Nitrile Check Ball
Floatting Polypropylene Ball
Provides pump station air relief and anti-siphon pretection

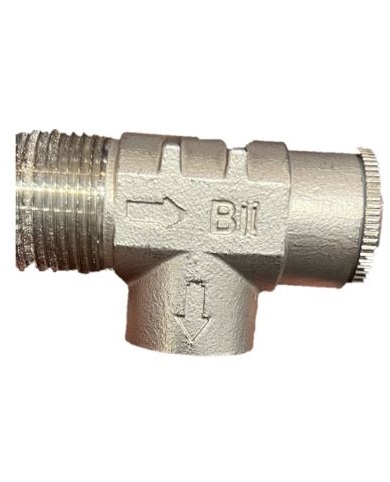

75 PSI SST Pressure Relief Valve
304SST Construction
Protects well tank systems from pressure buildup
3/4 in. male NPT x 1/2 in. female NPT
Not for use with water heaters; this is not a T and P valve
Starts to relieve pressure at 75 psi
Connect a pipe to the discharge of the valve for drainage
Working Perfectly with our 1-1/4" SST Anti-siphon and Pressure Relief Combo Valve

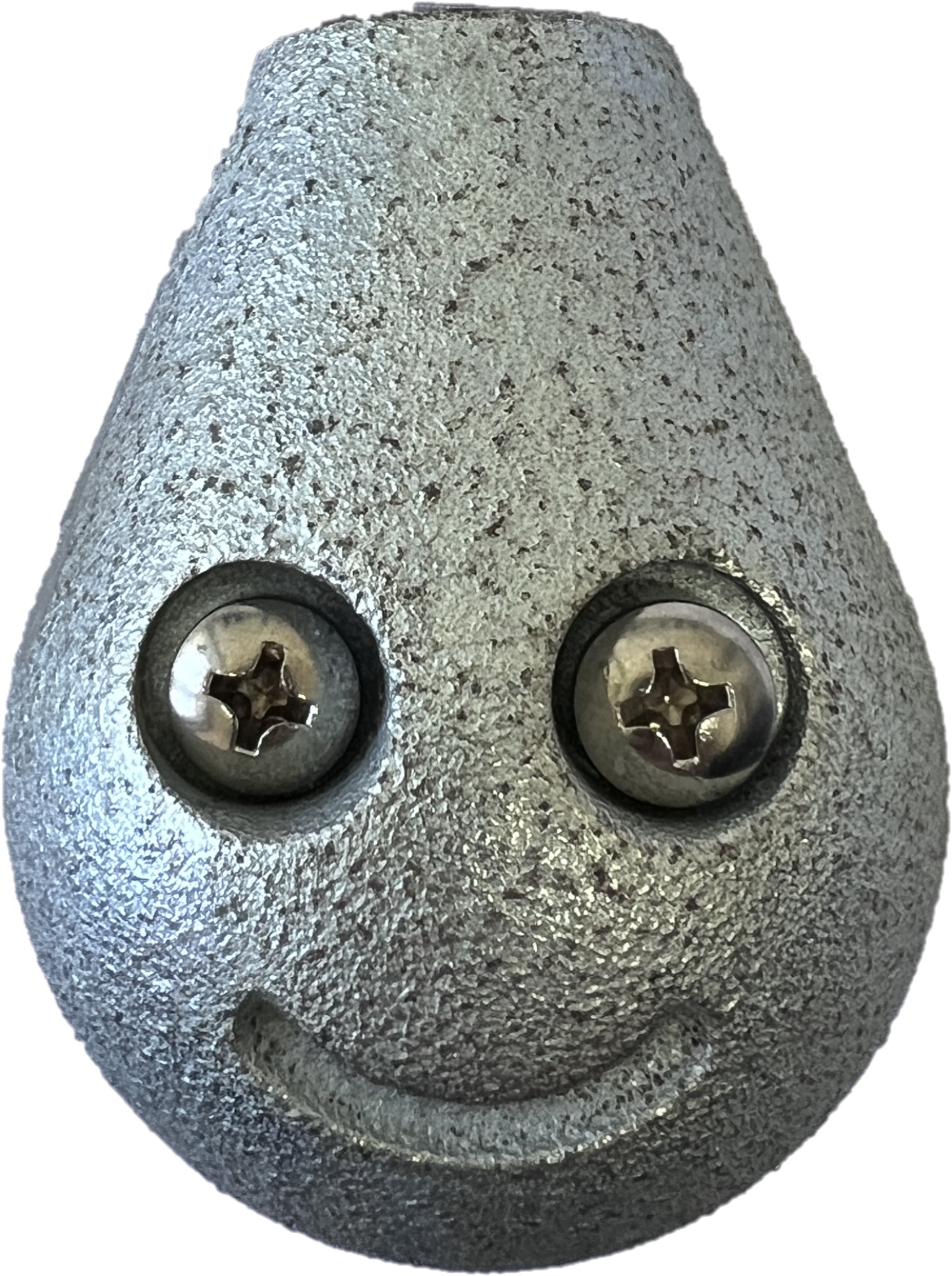

Cast Iron Cable Weight
Zinc Plated
18 AWG to 14 AWG type cable sizes
Size: 2.50" X 1.94"
Weight: 1.20 lbs
Stainless Steel Screws
For use in liquids up to 200° F

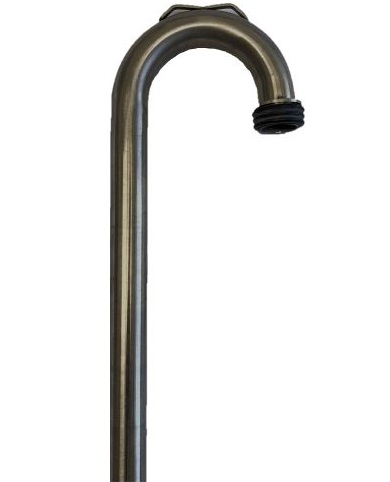

Gooseneck Discharge, E/one Compatible
SST Gooseneck discharge
E/One Compatiable
Customlized length available
O-ring Attached
