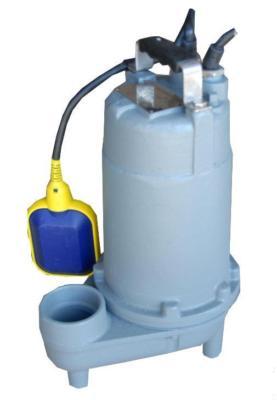

CFS Effluent Pumps Series

Application:

This high-performance sump/effluent pump is goods for Effluent and Wastewater removal, Sump Drainage, Water Transfer, ect.



Key Features:

  • 1/2 HP
  • Class 30 cast iron construction
  • 2”NPT discharge, Vertical
  • Single mechanical, Silicon Carbide, 300 series Stainless Steel Parts
  • Oil-filled motor with automatic reset overload provides safe operation
  • Ball bearing construction for long life
  • Automatic float switch (Optional, Model "A")



Technical Data:

  • DISCHARGE - 2" NPT. Vertical
  • SOLIDS HANDLING 1-1/2" (38mm)
  • LIQUID TEMPERATURE 104 Degrees F. Contiuous
  • MOTOR HOUSING Cast Iron
  • VOLUTE Cast Iron
  • SEAL PLATE Cast Iron
  • IMPELLER Cast Iron, 10 Vane, Recessed Type
  • SHAFT Stainless Steel
  • BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
  • HARDWARE 300 Series Stainless Steel
  • SQUARE RINGS Buna-N
  • POWER CORD 20ft cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 16AWG Type SJTOW
  • MOTOR (SINGLE PHASE)
    3450 RPM, 60Hz, 115 Volts
    NEMA L Includes Overload Protection In The Motor.
    Oil Filled, Class B
    Permanent Split Capacitor
  • SIZE 9.4" X 6.5 " X 14.5 "

Performance:

Model Hp Volt.
Ph		 FLA
amps		 Gal/Min @ Total Head in Feet Shut
off		 Weight
(lbs)
0 5 10 15 20 25
CFS50A 1/2 115/1 10.5 100 95 80 61 40 8 27 30
CFS50M 1/2 115/1 10.5 100 95 80 61 40 8 27 29
