Effluent Pumps

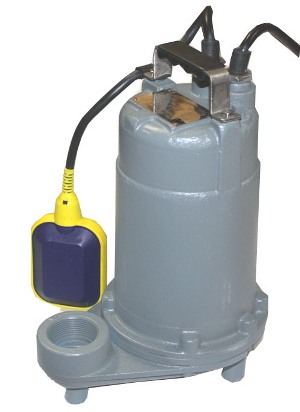

CFE Effluent Pumps Series
Application:
This high-performance sump/effluent pump is goods for Effluent and Wastewater removal, Sump Drainage, Water Transfer, ect.
Key Features:
- 4/10 HP & 1/2HP
- Class 30 cast iron construction
- 1-1/2”NPT discharge, Vertical
- Single mechanical, Silicon Carbide, 300 series Stainless Steel Parts
- Oil-filled motor with automatic reset overload provides safe operation
- Ball bearing construction for long life
- Automatic float switch (Optional, Model "A")
Technical Data:
-
DISCHARGE - 1-1/ 2" NPT. Vertical
-
SOLIDS HANDLING 3/8" (10mm)
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous
-
MOTOR HOUSING Cast Iron
- VOLUTE Cast Iron
- SEAL PLATE Cast Iron
-
IMPELLER Cast Iron, 10 Vane, Vortex
-
SHAFT Stainless Steel
-
BEARING (UPPER & LOWER) Single Row, Ball, Oil Lubricated
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 20ft cord, pressure grommet for sealing and strain relief. U/L and CSA listed 16AWG Type SJTOW
-
MOTOR (SINGLE PHASE)
3450 RPM, 60Hz, 115 Volts
NEMA L Includes Overload Protection In The Motor.
Oil Filled, Class B
Permanent Split Capacitor -
SIZE 9.4" X 6.5 " X 13.2 "
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 10 | 20 | 30 | 40 | ||||||
| CFE40A | 4/10 | 115/1 | 8 | 53 | 48 | 42 | 24 | 40 | 28 | |
| CFE40M | 4/10 | 115/1 | 8 | 53 | 48 | 42 | 24 | 40 | 27 | |
| CFE50A | 1/2 | 115/1 | 8 | 60 | 55 | 49 | 42 | 23 | 50 | 28 |
| CFE50M | 1/2 | 115/1 | 8 | 60 | 55 | 49 | 42 | 23 | 50 | 27 |
Download the CFE Effluent pumps brochure here
