Stainless Steel Pumps

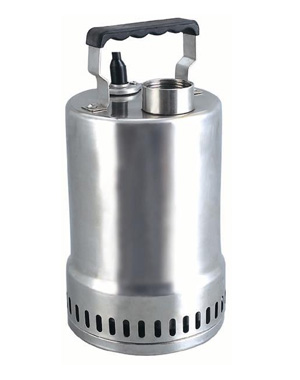

QDXBS Stainless Steel Pumps Series
Application:
Corrosion resistant Stainless Steel submersible dewatering pumps, specially designed for dewatering construciton sites, mines; subway,tunnels and civil engineering; utilities; residential and watewater discharge.
Key Features:
- 1/4HP and 1/3HP
- 304 Stainless Steel construction
- 1.25”NPT top discharge, Vertical
- Dual mechanical, 300 series Stainless Steel Parts
- Air-filled motor
Technical Data:
-
DISCHARGE - 1.25" NPT. Vertical
-
SOLIDS HANDLING 1/8"
-
LIQUID TEMPERATURE 104 Degrees F. Contiuous, 140 Degrees F. Intermittent
-
MOTOR HOUSING 304 Stainless Steel
- VOLUTE 304 Stainless Steel
- SEAL PLATE 304 Stainless Steel
-
IMPELLER ABS
-
SHAFT Corrosion resistance stainless steel, threaded design.
-
BEARING (UPPER & LOWER) Ball bearing construction to carry all radil and thrust loads
-
HARDWARE 300 Series Stainless Steel
-
SQUARE RINGS Buna-N
-
POWER CORD 20ft cord w/plug on 120 volt, pressure grommet for sealing and strain relief. U/L and CSA listed 14AWG Type SJTOW
-
DUAL MECHANICAL SEALS:
Stainless steel metal parts, BUNA-N elastomers
Upper Seal: Carbon vs Ceramic
Lower Seal: Silicon Carbide vs Silicon Carbide -
MOTOR (SINGLE PHASE)
3450 RPM, 60Hz, 115 Volts, 2 Pole
Air Filled, Class B
Permanent Split Capacitor -
SIZE 6" X 6" X 12"
Performance:
| Model | Hp | Volt. Ph |
FLA amps |
Gal/Min @ Total Head in Feet | Shut off |
Weight (lbs) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 5 | 10 | 15 | 20 | 25 | ||||||
| QDX180BS | 1/4 | 115/1 | 3.0 | 29 | 26 | 21 | 12 | 7 | 4 | 29 | 14 |
| QDX250BS | 1/3 | 115/1 | 3.5 | 38 | 35 | 30 | 25 | 19 | 10 | 29 | 18 |
